Description:

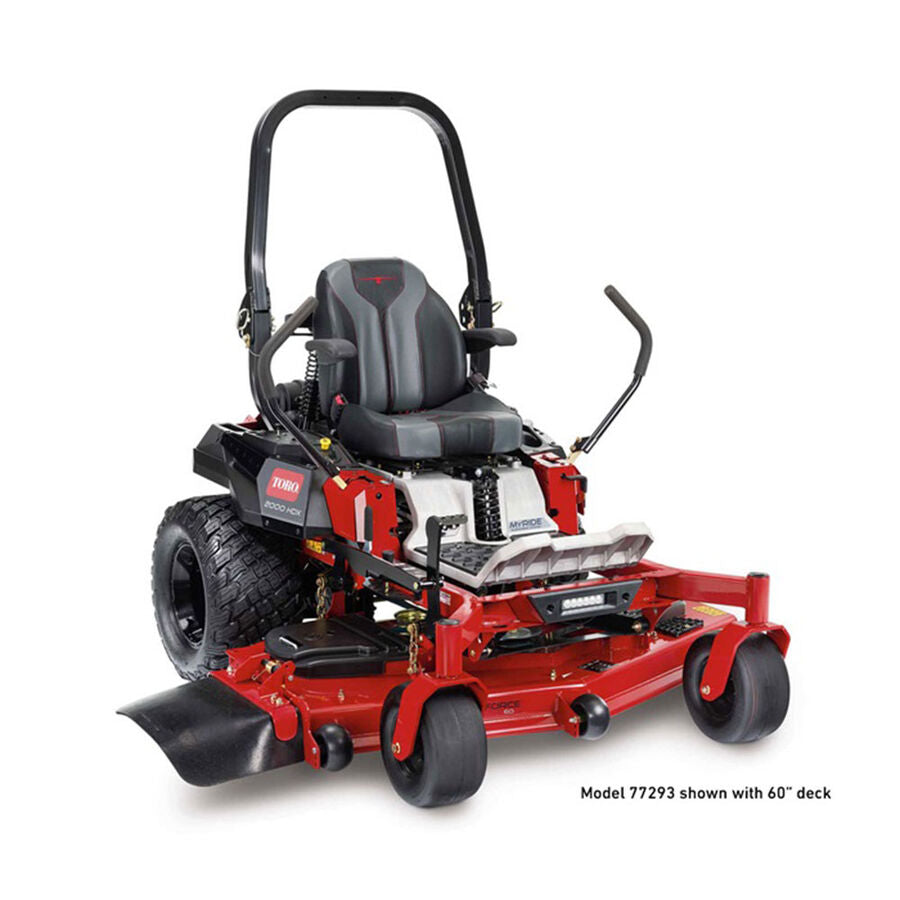

Take comfort to the next level with the 52 in. Z-Master 2000 HDX zero-turn mower with MyRIDE® Suspension System. Built with a power-packed 23.5 hp* Kawasaki® FX engine with heavy-duty air cleaner, commercial-grade hydros, 23 in. Kenda Reaper Tires, and a 7/10-Gauge High-Strength Steel TURBO FORCE® cutting deck for commercial-grade productivity. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, plus a USB port, cup holder, and storage space, you’ll stay comfortable – even on the longest days.

Features:

• Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
• MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
• Stand up to any challenge with the 48” 7/10-Gauge High-Strength Steel TURBO FORCE® cutting deck with bullnose bumper.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

Engine

• Brand: Kawasaki
• Model: FX730V
• Horsepower: 23.5 hp
• Displacement: 726 cc
• Air Filter: Heavy-Duty Canister-Style
• Start Type: Electric
• Fuel Type: Gasoline

Fuel

• Capacity: 7 gal / 26.5 L / 28 Qt.

Transmission

• Type: Hydro-Gear ZT-3800

Deck

• Size: 52 in / 132 cm
• Material: 7/10-Gauge High-Strength Steel
• Depth: 5 in / 12.7 cm
• Design: TURBO FORCE® with Bull-Nose Bumper
• Discharge: Rubber Chute (Side)

Performance

• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Forward Speed: Up to 11.0 mph / 17.7 kph
• Height of Cut: 1.5 - 5.0 in / 3.8 - 12.7 cm

Suspension & Comfort

• Platform: MyRIDE® Suspension System
• Platform Travel: 3.0 in / 7.6 cm
• Shocks: 1 Front Center / 2 Rear (5-point adjustable)
• Seat: High-Back Suspension Comfort Seat with Arm Rests
• Armrests: Standard
• Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened

Wheels & Tires

• Caster Tires (Front): 13 in x 6.5 in - 6 in (33 x 16.5 x 15.2 cm) Pneumatic
• Drive Tires (Rear): Kenda K3012, 23 in x 10.5 in - 12 in (58.4 x 26.7 x 30.5 cm)

Chassis & Features

• Clutch: Electromagnetic
• Spindle Bearings: Maintenance-free
• Spindle Housing: 8 in / 20.3 cm Diameter Aluminum
• Front Bumper: Reinforced Bull-Nose
• Tool Mounting: Side Console / Rear Guard Ready
• Hour Meter: Standard
• Lighting: Optional
• CARB Compliance: Not CARB Compliant

Dimensions & Weight

• Box Dimensions: 91 in x 70.25 in x 52.5 in / 231.1 cm x 178.4 cm x 133.4 cm
• Weight: 1,031 lbs / 467.7 kg

Width	Weight	Height	Length
0 Inch	1031 Pounds	0 Inch	0 Inch
